Basic Info.

Model NO.	C18150
Standard	ASTM
Size	Custom
Rwma	Class 2
MOQ	100kg
Price Term	CIF CFR Fob Ex-Work
Delivery Time	20-25days
Transport Package	Plywood Case
Specification	1mm
Trademark	ALB-ALLOY
Origin	China
Production Capacity	50000 Ton

Product Description

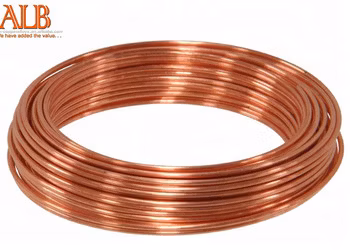

C18150 CuCrZr chromium zirconium coppwe wire in China

Product Description

Product Name	C18150 CuCrZr chromium zirconium coppwe wire in China
Material	Chromium Zirconium Copper Alloys
Shape	Wire
UNS/CDA	UNS C18150/ CDA 181
DIN	2.1293, CW106C
Class	Class2
Diameter	1-10mm
Used	Industry

Chemical Composition

Cr: 0.50-1.50%
Zr: 0.05-0.25% Min.
Cu: Reminder
Note: Copper plus additions equal 99.5% minimum
Physical PropertiesSpecific Weight: 8.90g/cm3
Specific Heat: 0.376J/g*k
Heat Conductivity: 320W/m*K
Electrical Resistivity:: 0.023 ohm*mm2/m
Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): 17 x 10-6
Electrical Conductivity: min 44 m/ohm*mm2 80.00%IASC
Note:
1). the units are based upon Metric.
2). the typical physical properties apply to age hardened products
Application

CuCr1Zr - UNS.C18150

Chromium Zirconium Copper C18150 is an excellent and unique copper alloy with high electrical conductivity, hardness, and ductility, moderate strength, and excellent resistance to softening at elevated temperatures. The addition of 0.1% zirconium (Zr) and 1.0% chromium (Cr) to copper results in a heat treatable alloy which may be solution treated and subsequently aged to produce these desirable properties. Rod is usually supplied from the mill in the fully aged and drawn condition so no further heat treatment is required by the fabricator. The softening temperature of properly heat treated C18150 rod exceeds 500°C as compared to unalloyed pure copper which softens at 200°C, and silver bearing coppers which soften at 350°C.Furthermore, many evidences shows that C18150 can provide less sticking and resisting deformation longer than its C18200 counterpart in some specific situatons.
